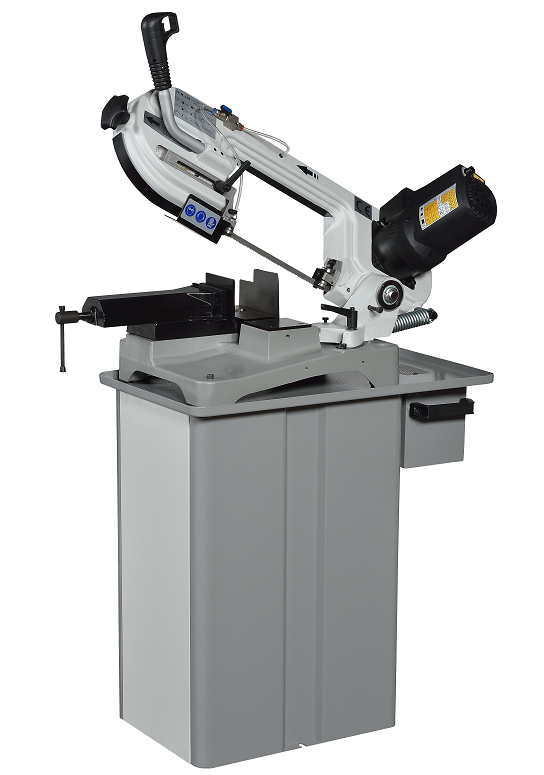

YCM-150 VW
Portable Band Saw

                ♦ Manual pull down cutting machine.

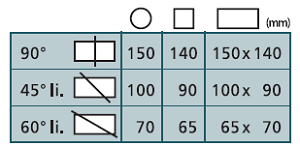

♦ Max cutting capacity at 150 mm. Max Vice open 175 mm. miter cutting from 0° to 60° left.

♦ Adjustment of the blade tension from the front side of the saw-frame.


                ♦ Steady and sturdy aluminum saw-frame and base.

♦ Start-button inside the operation handle.

♦ Motor available in single phase DC-motor with variable speed or AC-motor with single speed.

♦ Include the cooling system for cutting and machine stand.


                ♦ Two protectors (one controlling amps, another controlling temperature of the motor)

  >  Anti-reset safety function.

  >  Pulleys with 235 mm.

♦ Machine Weight 80kg


Portable Band Saw


 | Item | Motor | Blade Speed | Blade Size(mm) | Cooling | Dimension(mm) | N.W./G.W. | Packing(mm) | 20' load |
|---|---|---|---|---|---|---|---|---|
| YCM-150 VW | DC-1500W | 30~80 mpm | 1735x13x0.9 | YES | 1000x430x1480 | 108/120 kgs | Machine: 980x460x560 Stand: 735x505x156 | 100 sets |
| Noted: AC-Motor with three phase, DC-Motor with single phase | ||||||||
